The Reaction Of Biodiesel: The Science Of Transesterification

Biodiesel is a renewable and sustainable fuel that serves as an alternative to conventional diesel. At the heart of biodiesel production lies a chemical process called transesterification, where triglycerides from vegetable oils, animal fats, or waste oils react with an alcohol—typically methanol or ethanol—in the presence of a catalyst. This reaction results in the formation of fatty acid methyl esters, commonly referred to as biodiesel. Due to its biodegradability, lower greenhouse gas emissions, and compatibility with existing diesel engines, it has gained increasing attention as a potential solution for reducing dependence on fossil fuels. The transesterification reaction plays a crucial role in determining the efficiency, quality, and economic viability of fatty acid methyl ester production, making it a key focus for researchers and industry professionals. In this article, we will explore the science behind the reaction of biodiesel, focusing on transesterification, its steps, catalysts, and the challenges associated with the process.

What is Transesterification?

Transesterification is the chemical reaction that converts triglycerides (found in vegetable oils and animal fats) into organic fuel. The process involves reacting these triglycerides with an alcohol, typically methanol or ethanol, in the presence of a catalyst. The result is the production of biodiesel (Fatty Acid Methyl Ester) and glycerin.

The transesterification process can be represented by the following chemical equation:

Triglyceride + Alcohol → Biodiesel (FAMEs) + Glycerin

This reaction is crucial because it reduces the viscosity of the oil, making it suitable for use in diesel engines.

Types of Catalysts

The efficiency of FAME production depends on the choice of catalyst:

• Base Catalysts (NaOH, KOH): These are widely used due to their fast reaction rates and relatively low cost. However, they are highly sensitive to free fatty acids (FFAs), which can form soap and reduce bio-based diesel yield. Innovations in catalyst formulations are aimed at improving tolerance to FFAs, making base catalysts more suitable for a broader range of feedstocks.
• Acid Catalysts (H₂SO₄, HCl): Effective for high-FFA feedstocks, acid catalysts facilitate esterification alongside transesterification. However, they tend to be slower, require higher reaction temperatures, and can be corrosive to equipment. Researchers are investigating hybrid catalytic systems that combine acid and base catalysts to maximize reaction efficiency while minimizing drawbacks.
• Heterogeneous Catalysts: Unlike homogeneous catalysts, these solid catalysts can be reused, making them environmentally friendly and reducing waste disposal costs. However, they often require longer reaction times and higher processing costs. Advances in nanocatalyst technology are helping to improve reaction rates and reduce costs associated with heterogeneous catalysts.
• Enzymatic Catalysts: Utilizing lipases, enzymatic catalysis provides a highly selective and waste-free approach to bio-based diesel production. Despite its advantages, it remains expensive and slow, limiting its large-scale adoption. Ongoing research aims to enhance enzyme stability and reusability, making enzymatic processes more commercially viable.

Feedstock Considerations

Biodiesel is derived from a wide range of feedstocks, including:

• Refined Vegetable Oils: These provide high purity with minimal free fatty acids, resulting in higher bio-based diesel yields with minimal side reactions. However, their higher cost makes them less attractive for large-scale production.
• Crude Vegetable Oils: Although more cost-effective, these oils often require pre-treatment to remove FFAs and impurities before transesterification. Innovations in pre-treatment techniques, such as ultrasonic processing and enzymatic refining, are improving the viability of crude oils for biofuel production.
• Waste Cooking Oils and Animal Fats: These represent cost-effective and sustainable options but often contain high levels of FFAs and contaminants, necessitating additional processing steps such as esterification pre-treatment to enhance biofuel quality. The use of waste oils contributes to a circular economy, reducing environmental pollution while providing a low-cost feedstock for FAME production.

Optimizing Biodiesel Yield

Several factors influence biodiesel yield:

• Methanol-to-Oil Ratio: A higher methanol-to-oil ratio improves conversion efficiency but necessitates methanol recovery to minimize costs and environmental impact.
• Temperature and Reaction Time: The reaction is typically conducted at temperatures ranging from 40–65°C. Higher temperatures accelerate reaction rates but must be controlled to prevent unwanted side reactions. Advanced heating techniques, such as microwave-assisted and ultrasonic-assisted transesterification, are being explored to enhance reaction efficiency.
• Catalyst Concentration: The appropriate amount of catalyst ensures complete conversion of triglycerides while minimizing soap formation, which can reduce biodiesel purity and complicate separation.
• Mixing and Agitation: Proper mixing ensures uniform dispersion of reactants, enhancing reaction efficiency and preventing localized concentration imbalances.

Key Stages of the Transesterification Reaction

The production of FAME through transesterification involves four key steps:

1. Preparation of the Catalyst

The catalyst, usually a strong base like sodium hydroxide (NaOH) or potassium hydroxide (KOH), is mixed with methanol to form methoxide. This step is critical because the catalyst initiates the reaction.

The chemical reaction for methoxide formation is:

NaOH + CH3OH → Na+ + CH3O- + H2O

Here, the hydroxide ion (OH-) abstracts a hydrogen ion (H+) from methanol, forming water and leaving the methoxide ion (CH3O-) available for the reaction.

2. Interaction Between Methoxide and Triglycerides

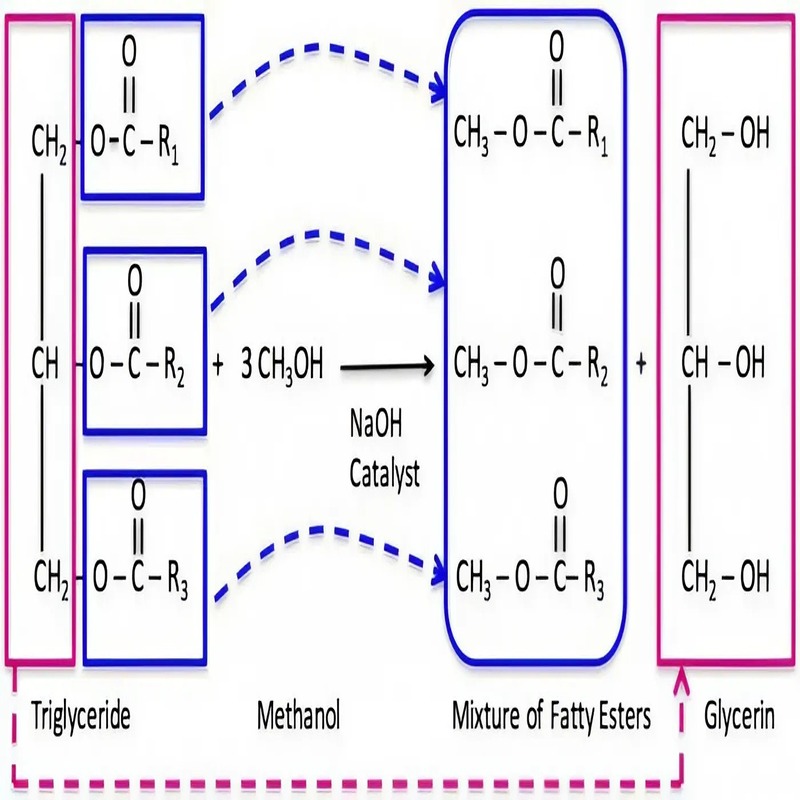

The methoxide is then mixed with the triglyceride (oil or fat). In simple terms, the reaction is expressed as:

Triglyceride + 3 Methanol → 3 Biodiesel (FAMEs) + Glycerin

The reaction breaks the triglyceride into: 3 molecules of FAME , 1 molecule of glycerin.

3. Isolating Biodiesel from Glycerin

After the reaction, the mixture separates into two layers: the top layer is FAME , and the bottom layer is glycerin. The glycerin is removed, and the FAME is washed to remove any remaining impurities.

4. Purification of Biodiesel

The final step involves purifying this green diesel by removing excess alcohol, water, and any residual catalyst. This ensures the green fuel meets quality standards for use in engines.

Emerging Technologies in Biodiesel Generation

The energy industry is entering a new era with the emergence of advanced technologies. One notable approach is In Situ Transesterification, which optimizes FAME production by minimizing feedstock processing steps.

1. In Situ Transesterification

This method involves directly converting lipids in feedstocks like waste cooking oil or algae into sustainable diesel without prior extraction. It reduces energy consumption and processing steps, making it cost-effective.

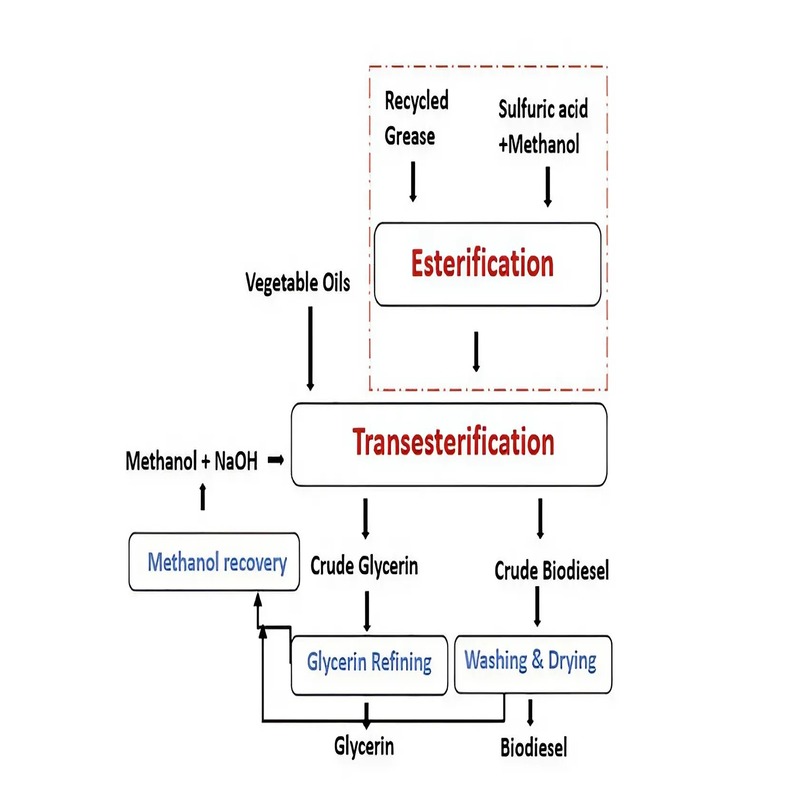

2. Two-Step Process

For feedstocks with high FFA content, a two-step process is used:

• Step 1: Acid-catalyzed esterification to convert FFAs into FAME.
• Step 2: Alkaline-catalyzed transesterification to convert triglycerides into FAME.

3. Use of Nanocatalysts

Nanocatalysts, such as Si/Ce, have shown promise in enhancing reaction rates and bio-based diesel yields. They are also reusable, reducing overall production costs.

Obstacles in the Biodiesel Manufacturing Process

Despite advancements in production, several challenges remain. One major obstacle is feedstock variability, which affects yield, quality, and overall efficiency of the manufacturing process.

1. Feedstock Variability

Different feedstocks (e.g., soybean oil, waste cooking oil, animal fats) have varying FFA and water content. High free fatty acids feedstocks require pre-treatment, such as acid-catalyzed esterification, before transesterification.

2. Soap Formation

Soap formation is a common issue when using alkaline catalysts with high free fatty acids feedstocks. This not only reduces bio-based diesel yield but also complicates the separation process.

3. Environmental Concerns

Homogeneous catalysts like NaOH and H2SO4 can cause environmental pollution and equipment corrosion. Heterogeneous catalysts are being explored as a greener alternative due to their reusability and lower environmental impact.

Ecological and Financial Implications of Biodiesel

FAME production offers significant environmental benefits, such as reducing carbon emissions and decreasing dependence on fossil fuels. Utilizing waste oils and non-food-based feedstocks contributes to a circular economy, reducing environmental pollution and promoting resource efficiency. However, challenges remain in bio-based diesel adoption, including:

• Production Costs: The cost of FAME production remains higher than fossil diesel in many regions, largely due to feedstock price volatility and the energy-intensive processing steps required. Research into alternative feedstocks, such as algae and microbial oils, aims to lower costs and improve scalability.
• Feedstock Availability: Scaling up FAME production requires a reliable and sustainable feedstock supply, which can be influenced by agricultural practices and market fluctuations.

Waste oils contributes to a circular economy, reducing environmental pollution

• Glycerol Management: The transesterification reaction generates a significant amount of glycerol as a byproduct. Developing value-added applications for glycerol, such as pharmaceuticals, cosmetics, and bioplastics, is essential to improving the economic viability of FAME production.

Conclusion

The reaction of biodiesel through transesterification is a well-established process that transforms triglycerides into a sustainable fuel. While the process is straightforward, it requires careful control of factors like catalyst type, alcohol-to-oil ratio, and feedstock quality. Advances in technology, such as in situ transesterification and nanocatalysts, are making biofuel production more efficient and environmentally friendly. As the world seeks greener energy solutions, this sustainable energy stands out as a viable alternative to traditional diesel, offering both environmental and economic benefits.

By understanding the science behind the reaction of biodiesel, we can optimize production processes and contribute to a more sustainable future. Whether you're a scientist, engineer, or simply an eco-conscious individual, the journey of it from feedstock to fuel is a fascinating example of chemistry in action.
